Tsev Khoom CO2 Laser Tshuab CO2 Laser Tej Tshuab Paub meej

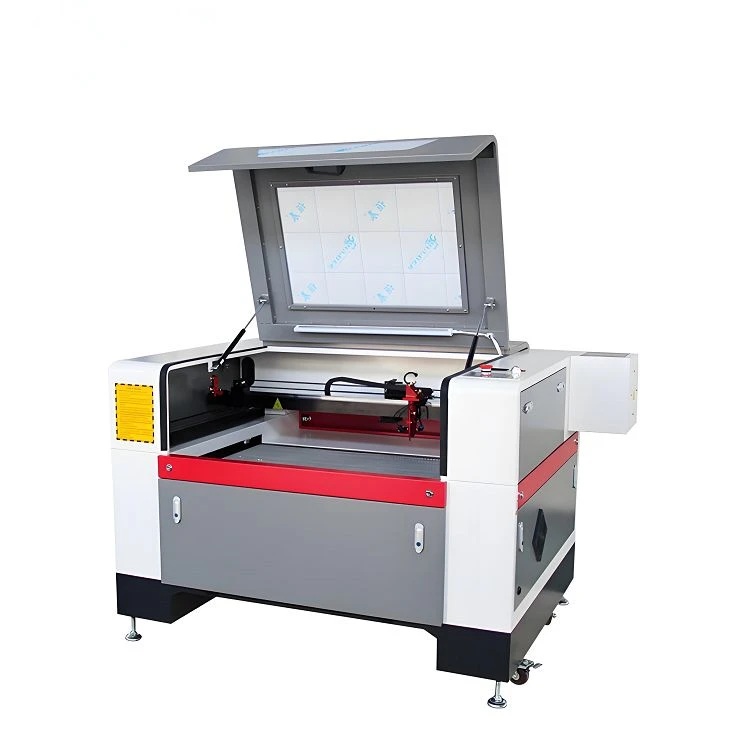

Daim ntawv laser txiav tshuab

1. Qauv: Ek -9060
2. Ua Haujlwm: 900 * 600 hli
3. Fais fab: 90w Reci Ntim Co2 Laser Tube
4. Kev tsav tsheb: Stepper Tsav thiab cov tsav tsheb
5. Maub cov system: Ruida 6445
6. Daim ntawv thov: Acrylic, iav, tawv, ntawv, ntawv, yas, plywood, roj hmab, ntoo
7. Kev Lag Luam Chiller: S & CW5000 Dej Chiller
8. Daim duab hom kev txhawb nqa: BMP, plt, DST, DXF, Ai, CDR
9. Ua Haujlwm Voltage: AC 110-220 v ± 10% 50Hz {{} hz

Xa kev nug

Muaj nuj nqi

Tshuab Duab

Tshuab Cov Ntsiab Lus Tseem Ceeb

1. Modular tsim: muaj cov kev sib cais uas tuaj yeem yooj yim kom haum kom haum los ntawm qhov rooj nqaim thiab kev ua kom zoo tshaj plaws rau cov chaw muaj kev nkag mus tsawg.

2. Dual lub peev xwm: seamlessly hloov ntawm engraving thiab txiav, ua rau cov kev siv ntau yam los ntawm cov kev tsim qauv kom muaj zog.

3. Cov khoom siv khoom siv: ua haujlwm tau zoo tshaj plaws rau cov ntaub ntawv tsis zoo xws li xyoob, jade, iav, iav, thiab cov fabrics. Ib qho ntxiv, nws tuaj yeem cim hlau siv cov kev ntxiv xws li Cermark.

4. Xav txog daim ntawv thov dav dav: Zoo tagnrho rau kev lag luam xws li kev tshaj tawm, kev kos duab thiab khoom siv tes, khaub ncaws, thiab lwm yam. Zoo meej rau kev tsim txhua yam ntawm cov khaub ncaws ua qauv rau cov khoom siv hlau thiab khoom zoo nkauj.

5. Ua tiav pob nrog: Los nruab nrog dej txias system cw {}}, cua tshuab thiab txhua phau ntawv tseem ceeb los ua kom muaj kev pib ua kom zoo thiab ua haujlwm.

6. Precision thiab ua tau zoo: muaj kev txiav cov npoo tsis muaj kev tsis muaj kev sib cav, thiab txhim kho kev ua kom ntsiag to thiab kho kom zoo, txo cov khib nyiab thiab ua kom nrawm dua thiab txhawb nqa kev ua haujlwm.

7. Txhim khu kev qha txhawb nqa: muaj txiaj ntsig rau peb cov kev pabcuam tshwj xeeb thiab xa cov txiaj ntsig zoo tshaj plaws ntawm Suav laser txiav tshuab.

Txiav cov piv txwv

Kev Qhia Tshwj Xeeb ntawm Co2 Laser Tej Tshuab

Txiav thaj chaw	LASER Fais	Laser hom
51.18" x 35.4""	90W RECI	Kaw cov iav raj
Cov Hluav Taws Xob	Kev pab fais fab	Cov Khoom Siv Khoom Siv
RUIDA 6445	Ac 110-220 v ± 10% 50hz {{}} hz	Xyoob, jade, iav, iav, tshuab, ntaub, tawv, ntoo, ntoo, acrylic, acrylic, thiab lwm yam khoom siv tsis ua haujlwm.
Cov Khoom Siv Saib Xyuas	Ua Haujlwm Saum Toj	Tsav Hom / Ceev
Tso ntxuam, cua sab tshuab pa, huab cua pab twj	Hlau Honeycomb, Aluminium Swb Pw	Loj micro faib stepper motors (max engraving ceev 1, 000 mm / s)
Cua txias	Kev nplig	Daim duab hom kev txhawb nqa
CW -5000 dej-cua txias, ntws sensor kev nyab xeeb system	Qhov chaw precision <0. 01mm, txog li 1000 dpi scanning	BMP, PLT, DST, DXF, Ai, CDR
